This Flat Washer Form A is crafted from high-quality steel in a self-colour finish, offering a strong and reliable solution for various fastening applications. Designed for durability, this washer provides excellent load distribution, helping to prevent surface damage and ensuring a secure connection between fasteners and materials.

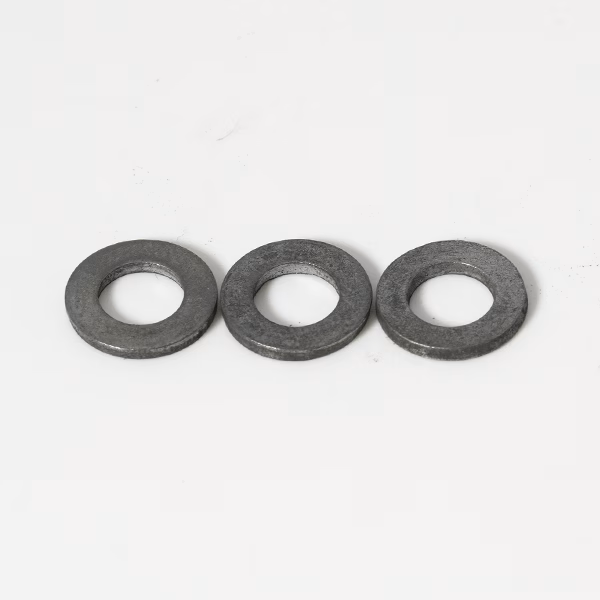

Flat Washer Form A – Self Colour
Price range: £0.01 through £1.93 exc VAT
Description
| FORM A | FORM B | FORM C | FORM D | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ID | OD | TH | OD | TH | OD | TH | OD | TH | |||
| M1.6 | 4.00 | 0.30 | |||||||||
| M2 | 5.00 | ||||||||||
| M2.5 | 6.50 | 0.50 | |||||||||
| M3 | 7.00 | 0.50 | |||||||||
| M3.5 | 7.00 | 0.50 | |||||||||
| M4 | 9.00 | 0.80 | |||||||||
| M5 | 10.00 | 1.00 | 10.00 | 0.80 | 10.00 | 0.80 | |||||
| M6 | 12.50 | 1.60 | 12.50 | 0.80 | 12.50 | 0.80 | 14.00 | 0.80 | |||
| M8 | 17.00 | 1.60 | 17.00 | 1.00 | 17.00 | 21.00 | 1.00 | ||||
| M10 | 21.00 | 2.00 | 21.00 | 1.25 | 21.00 | 1.25 | 24.00 | 1.25 | |||
| M12 | 24.00 | 2.50 | 24.00 | 1.60 | 24.00 | 1.60 | 28.00 | 1.60 | |||
| M14 | 28.00 | 2.50 | 28.00 | 1.60 | 28.00 | 1.60 | |||||
| M16 | 30.00 | 3.00 | 30.00 | 2.00 | 30.00 | 2.00 | 34.00 | 2.00 | |||
| M18 | 34.00 | 3.00 | 34.00 | 2.00 | 34.00 | 2.00 | |||||
| M20 | 37.00 | 3.00 | 37.00 | 2.00 | 37.00 | 2.00 | 39.00 | 2.00 | |||
| M22 | 39.00 | 3.00 | 39.00 | 2.00 | 39.00 | 2.00 | |||||
| M24 | 44.00 | 4.00 | 44.00 | 2.50 | 44.00 | 2.50 | 50.00 | 2.50 | |||
| M27 | 50.00 | 4.00 | 50.00 | 2.50 | 50.00 | 2.50 | |||||
| M30 | 56.00 | 4.00 | 56.00 | 2.50 | 56.00 | 2.50 | |||||
| M33 | 60.00 | 5.00 | 60.00 | 3.00 | 60.00 | 3.00 | |||||
| M36 | 66.00 | 5.00 | 66.00 | 3.00 | 66.00 | 3.00 | |||||
| M39 | 72.00 | 6.00 | 70.00 | 3.00 | 70.00 | 3.00 |
Additional information
| Size (mm) | M6, M8, M10, M12, M30, M39, M48, M60, M72 |
|---|
